NIC-R1

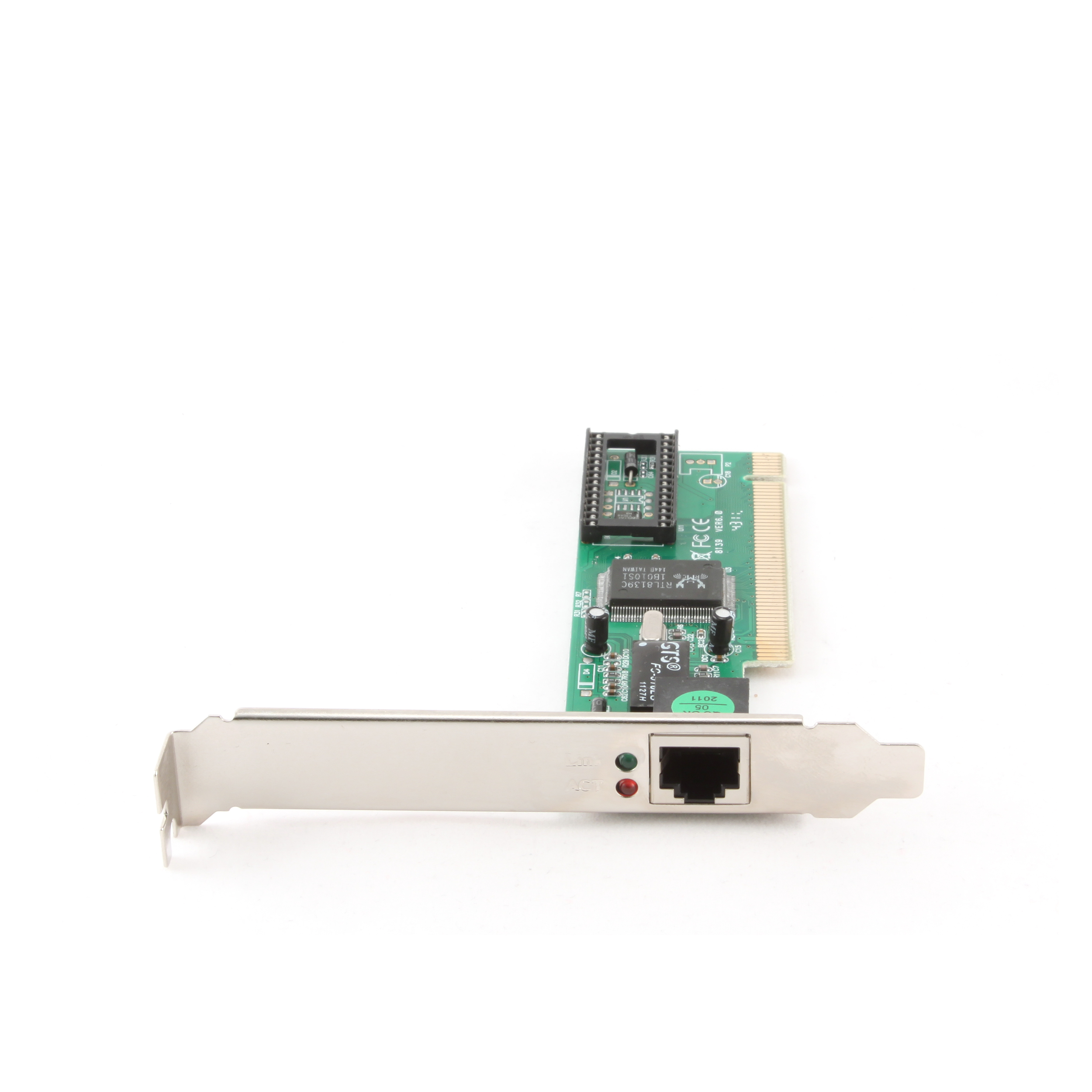

100Base-TX PCI Fast Ethernet Card Realtek chipset

  • Simply faster networking!


  • 10/100Mbps single-chip controller with PCI local bus specification 2.1
  • Supports auto-negotiation
  • On board socket for optional remote Boot ROM
  • Realtek 8139C chipset
Specifications
Supports both 10Mbps and 100 Mbps data transfer rate
Full Duplex mode ensures up to 20Mbps/200Mbps channel bandwidth
Auto-negotiation for automatic selection of the date transfer rate
Wake -on-LAN function
On-board socket for an optional remote boot ROM
High performance bus master architecture for low CPUs and bus utilisation
Shielded RJ-45 connector
Chipset: RTL8139C
System requirements
Windows XP, Vista, 7, 8; UNIX, Linux
Packing details
Q'ty in crtn, pcs50
Crtn volume, CUM0.05160675
Crtn weight, kgs4.4
Individual package size LxWxH:160x30x145 mm
Carton size LxWxH:790x335x195 mm
Country of originCN
Barcode8716309016087
Customs code8517610090
